FM574-VE> Brushless, Asynchronous Induction motors vector drive

Synchronous Brushless and asynchronous induction motors vector control drive. Nominal current up to 10A, 230Vac o 400Vac single/tri-fase. Hall effect, Incremental Encoder and Resolver supported sensors. Available electrical axis mode. Available CAN, CANopen, PROFIBUS, RS232/RS485 (ModBus) connections. PC software for easy parameters access and archiving.

FM587> Digital drive for stepper motors, 100V 10A/ph

Compact drive for stepper motors, full programmable digital control system. Open loop control or closed loop control, with incremental encoder. CAN network connection, available CANopen protocol. Full control through RS232 connection (ModBus). PC software for easy parameters access and archiving.

FM589> Compact digital drive for brushless motors, 100V 10A and 200V 5A

Compact drive for brushless motors, full programmable digital control system. Control for vector synchronous motors with incremental encoder, BLDC with Hall-effect sensors and brushless sensorless. CAN network connection, available CANopen protocol. Full control through RS232 connection (ModBus). PC software for easy parameters access and archiving.

FM581> Compact digital drive for DC motors, 100V 8A and 200V 5A

Compact drive for DC motors, full programmable digital control system. Current or Current+Speed control mode with armature or tachometer feedback. Analog input for speed/current reference and variable current limit. Full controll through RS232 connection (ModBus). PC software for easy parameters access and archiving.

FM607> Touch-Screen panel, 5.7" and 10" size, Linux operative system.

Touch-Screen panel, 5.7" and 10". Microprocessor ARM9, RAM 64MB, FLASH 256MB. Connections: 1x RS485,1x RS232 + 1x RS232 consolle, CANbus, 1xUSB Device, 2xUSB Host, Ethernet 10/100, hard disk IDE interface. Power supply 230Vac or 24Vdc. Panel mount, IP20 housing. Compatibility with Windows and Linux operative systems. Available Linux 2.6 kernel patch. Custom solutions.



Work in progress, this page is waiting for translation.

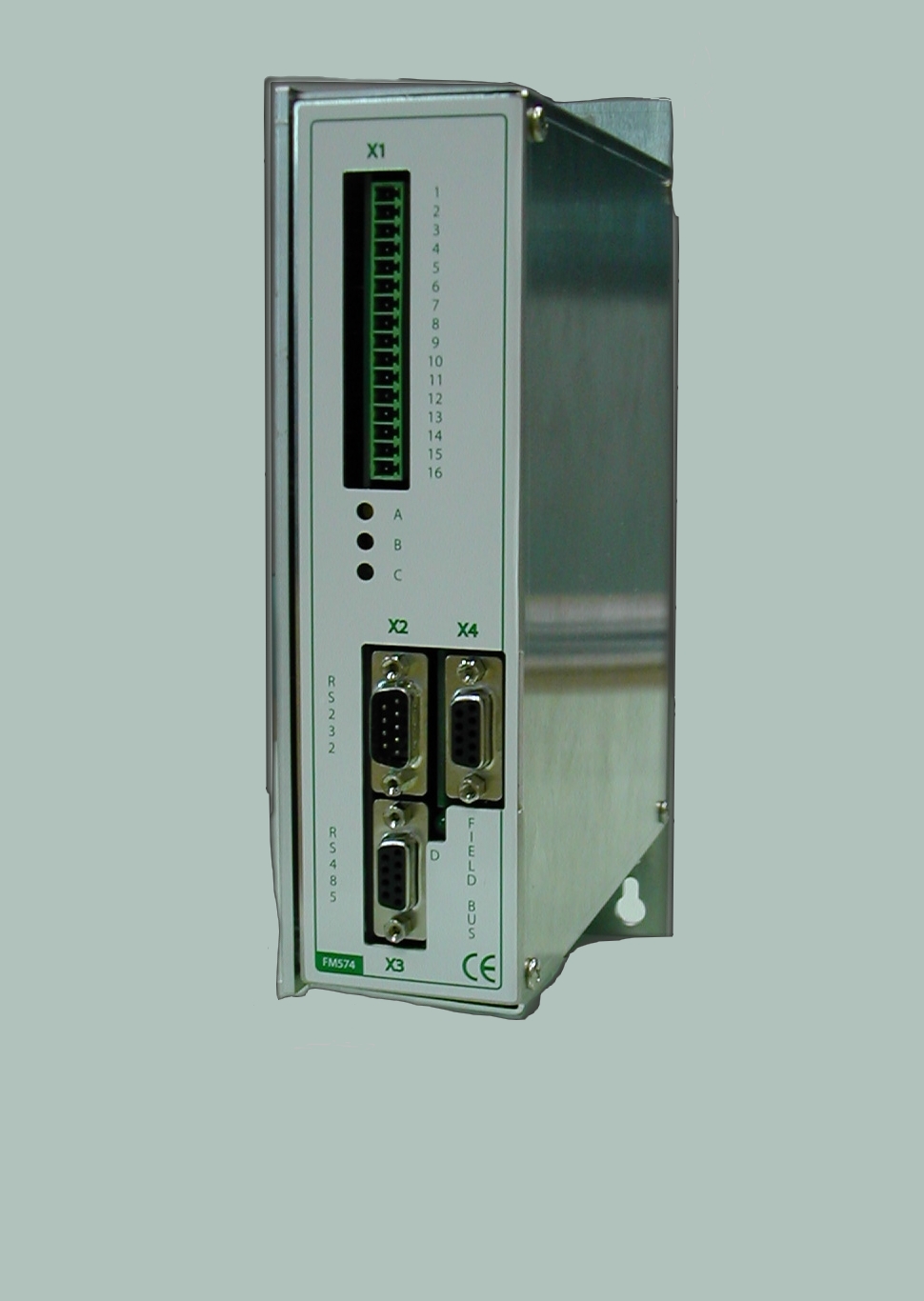

FM574-VE is design mainly to power permanent magnet brushless motors and asynchronous induction motors with vector control.

Available in various sizes, which differ in the solution taken for the dissipation of heat, with currents up to 10A at 230Vac or 400VAC.

Supports the following position sensors for motor control:

Available encoder simulation output and an auxiliary encoder input realize master-slave electrical axis control.



Available field-bus:

Every function of the inverter is fully programmable and controllable through the serial communication channels available.

Sono disponibili ingressi di controllo locali:

Through the serial interface RS232/RS485 based on ModBus protocol, are available all the configuration and control parameters.

The configuration is assisted by a PC program,

Tramite bus di campo sono accessibili tutti i parametri di configurazione e di controllo dell'inverter. La configurazione è assistita da un programma su PC, attraverso collegamento seriale ModBus.

Ogni insieme di parametri di configurazione è memorizzabile su file e richiamabile in qualunque momento per programmare più azionamenti o archiviare il lavoro svolto.



Una scheda opzionale aggiunge la possibilità di utilizzare una interfaccia PROFIBUS.
