FM607> Touch-Screen panel, 5.7" and 10" size, Linux operative system.

Work in progress.

News

FM587> Digital drive for stepper motors, 100V 10A/ph

Compact drive for stepper motors, full programmable digital control system. Open loop control or closed loop control, with incremental encoder. CAN network connection, available CANopen protocol. Full control through RS232 connection (ModBus). PC software for easy parameters access and archiving.

FM607> Touch-Screen panel, 5.7" and 10" size, Linux operative system.

Touch-Screen panel, 5.7" and 10". Microprocessor ARM9, RAM 64MB, FLASH 256MB. Connections: 1x RS485,1x RS232 + 1x RS232 consolle, CANbus, 1xUSB Device, 2xUSB Host, Ethernet 10/100, hard disk IDE interface. Power supply 230Vac or 24Vdc. Panel mount, IP20 housing. Compatibility with Windows and Linux operative systems. Available Linux 2.6 kernel patch. Custom solutions.

FM574-VE> Brushless, Asynchronous Induction motors vector drive

Synchronous Brushless and asynchronous induction motors vector control drive. Nominal current up to 10A, 230Vac o 400Vac single/tri-fase. Hall effect, Incremental Encoder and Resolver supported sensors. Available electrical axis mode. Available CAN, CANopen, PROFIBUS, RS232/RS485 (ModBus) connections. PC software for easy parameters access and archiving.

FM589> Compact digital drive for brushless motors, 100V 10A and 200V 5A

Compact drive for brushless motors, full programmable digital control system. Control for vector synchronous motors with incremental encoder, BLDC with Hall-effect sensors and brushless sensorless. CAN network connection, available CANopen protocol. Full control through RS232 connection (ModBus). PC software for easy parameters access and archiving.

FM581> Compact digital drive for DC motors, 100V 8A and 200V 5A

Compact drive for DC motors, full programmable digital control system. Current or Current+Speed control mode with armature or tachometer feedback. Analog input for speed/current reference and variable current limit. Full controll through RS232 connection (ModBus). PC software for easy parameters access and archiving.




Download

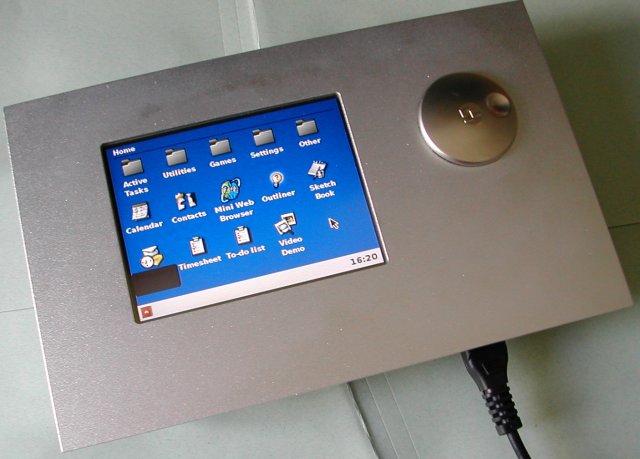

Touch-Screen terminal, 5.7" e 10", ARM9 processor, 64MB RAM, 256MB FLASH memory.



Communication ports: 1x RS485,1x RS232 + 1x RS232 consolle, CANbus, 1xUSB Device, 2xUSB Host, Ethernet 10/100, IDE hard disk interface.



The CPU is mounted on a separate hardware module connected to an additional card allowing easily interfacing changes for specific application.



We propose the system as touch-screen human machine interface, but you can use the CPU for systems of different types.



We have a version with a 5.7" size touch-screen, 320x240 resolution, and one of 10" size, 640x480 resolution.

The 5.7" size version has also a knob with an incremental encoder on the panel to facilitate the selection and characters typing.

The construction provides panel mount: support in aluminium with seal, completed with a rear cover in stainless steel.

The main power supply is 24Vdc, but with the addition of a small converter internally mounted, the system can work with 110Vac or 230Vac power supply.



We are able to provide the terminal complete with Linux operating system, based on 2.6 kernel, already adapted to the provided hardware, display and touch-pad.

We have also libraries adapted for communication with ModBus protocol, CANopen protocol for the most common ethernet network protocols.



The user may choose to install our version of Linux operating system, or install a different system (hardware is compatible with both Linux and Windows), rather than his own firmware.



We invite anyone interested to contact us to discuss the details of the application.
