FM589> Compact digital drive for brushless motors, 100V 10A and 200V 5A

Work in progress.

News

FM587> Digital drive for stepper motors, 100V 10A/ph

Compact drive for stepper motors, full programmable digital control system. Open loop control or closed loop control, with incremental encoder. CAN network connection, available CANopen protocol. Full control through RS232 connection (ModBus). PC software for easy parameters access and archiving.

FM607> Touch-Screen panel, 5.7" and 10" size, Linux operative system.

Touch-Screen panel, 5.7" and 10". Microprocessor ARM9, RAM 64MB, FLASH 256MB. Connections: 1x RS485,1x RS232 + 1x RS232 consolle, CANbus, 1xUSB Device, 2xUSB Host, Ethernet 10/100, hard disk IDE interface. Power supply 230Vac or 24Vdc. Panel mount, IP20 housing. Compatibility with Windows and Linux operative systems. Available Linux 2.6 kernel patch. Custom solutions.

FM574-VE> Brushless, Asynchronous Induction motors vector drive

Synchronous Brushless and asynchronous induction motors vector control drive. Nominal current up to 10A, 230Vac o 400Vac single/tri-fase. Hall effect, Incremental Encoder and Resolver supported sensors. Available electrical axis mode. Available CAN, CANopen, PROFIBUS, RS232/RS485 (ModBus) connections. PC software for easy parameters access and archiving.

FM589> Compact digital drive for brushless motors, 100V 10A and 200V 5A

Compact drive for brushless motors, full programmable digital control system. Control for vector synchronous motors with incremental encoder, BLDC with Hall-effect sensors and brushless sensorless. CAN network connection, available CANopen protocol. Full control through RS232 connection (ModBus). PC software for easy parameters access and archiving.

FM581> Compact digital drive for DC motors, 100V 8A and 200V 5A

Compact drive for DC motors, full programmable digital control system. Current or Current+Speed control mode with armature or tachometer feedback. Analog input for speed/current reference and variable current limit. Full controll through RS232 connection (ModBus). PC software for easy parameters access and archiving.

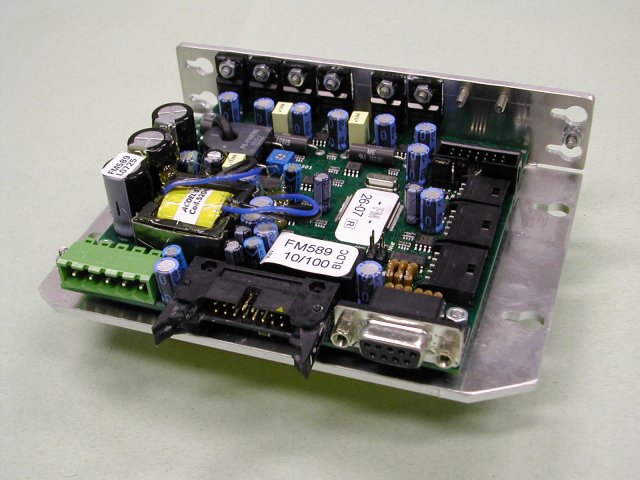

FM589 is a full programmable and compact synchronous motors controller, only 30(h) x 140(l) x 105(p) [millimeters].

Available in four versions:

Digital I/O and analog input are connected through a single flat-cable connector (it's also available a crimp discrete wire socket):

Drive is full programmable, with several working options and parameters:

All parameters and functions are available through interface RS232 with ModBus protocol. We supply a simple PC software application in order to program the drive, with the possibility to save to disk the setup and re-use it.

Available CAN-Bus connection for remote control and configuration, also with CANopen protocol.
