FM574> Asynchronous and Stepper motors drive

News

FM587> Digital drive for stepper motors, 100V 10A/ph

Compact drive for stepper motors, full programmable digital control system. Open loop control or closed loop control, with incremental encoder. CAN network connection, available CANopen protocol. Full control through RS232 connection (ModBus). PC software for easy parameters access and archiving.

FM607> Touch-Screen panel, 5.7" and 10" size, Linux operative system.

Touch-Screen panel, 5.7" and 10". Microprocessor ARM9, RAM 64MB, FLASH 256MB. Connections: 1x RS485,1x RS232 + 1x RS232 consolle, CANbus, 1xUSB Device, 2xUSB Host, Ethernet 10/100, hard disk IDE interface. Power supply 230Vac or 24Vdc. Panel mount, IP20 housing. Compatibility with Windows and Linux operative systems. Available Linux 2.6 kernel patch. Custom solutions.

FM574-VE> Brushless, Asynchronous Induction motors vector drive

Synchronous Brushless and asynchronous induction motors vector control drive. Nominal current up to 10A, 230Vac o 400Vac single/tri-fase. Hall effect, Incremental Encoder and Resolver supported sensors. Available electrical axis mode. Available CAN, CANopen, PROFIBUS, RS232/RS485 (ModBus) connections. PC software for easy parameters access and archiving.

FM589> Compact digital drive for brushless motors, 100V 10A and 200V 5A

Compact drive for brushless motors, full programmable digital control system. Control for vector synchronous motors with incremental encoder, BLDC with Hall-effect sensors and brushless sensorless. CAN network connection, available CANopen protocol. Full control through RS232 connection (ModBus). PC software for easy parameters access and archiving.

FM581> Compact digital drive for DC motors, 100V 8A and 200V 5A

Compact drive for DC motors, full programmable digital control system. Current or Current+Speed control mode with armature or tachometer feedback. Analog input for speed/current reference and variable current limit. Full controll through RS232 connection (ModBus). PC software for easy parameters access and archiving.

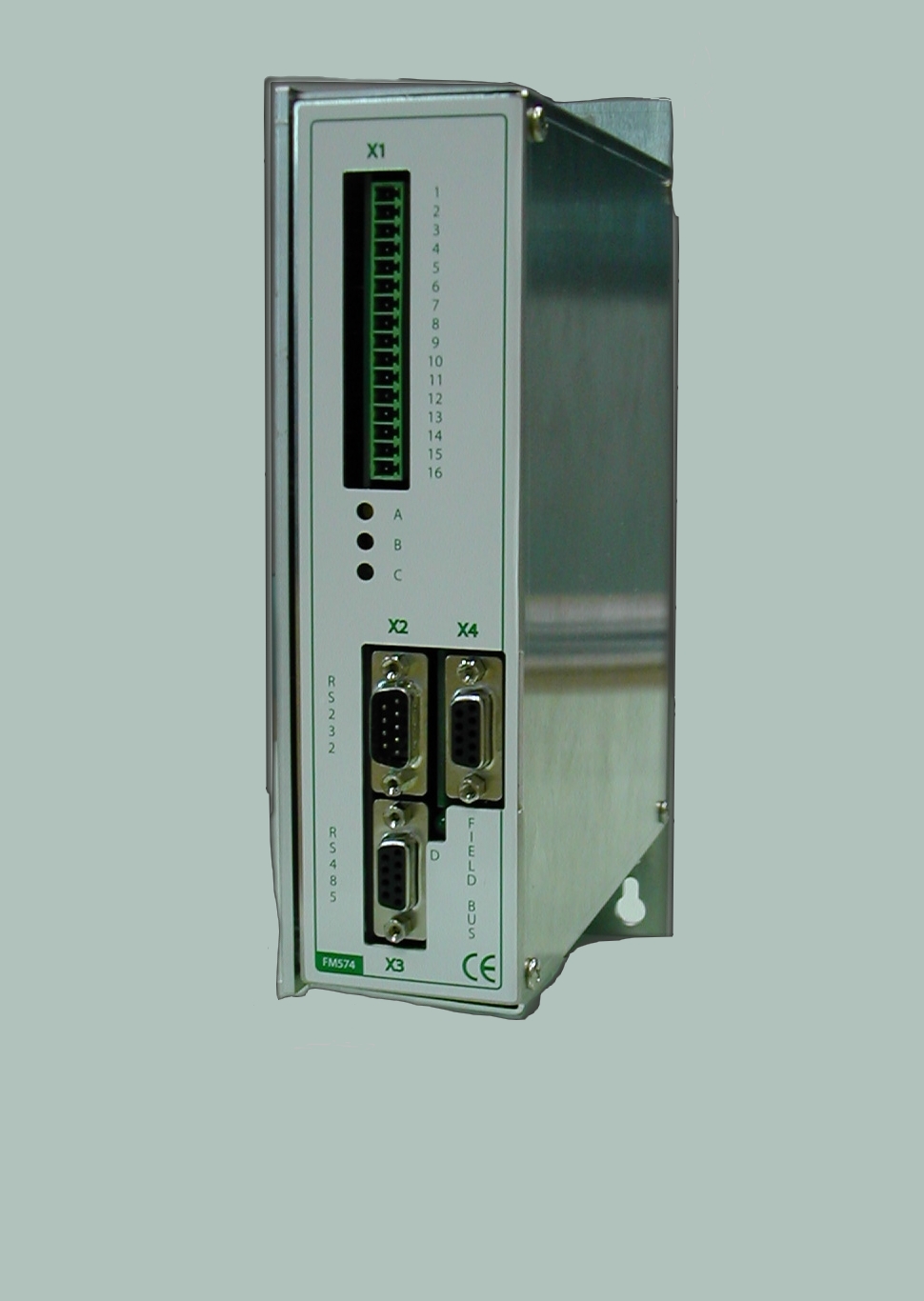

FM574 is designed to power two-/three-phase synchronous stepper motors or three-phase asynchronous induction motors.



Synchronous two-/three-phase stepper are a special category of motors. They are often used with direct connection to the power line. The phase displacement required between the phases is obtained with the aid of capacitors and switches in configurations more or less complex depending on the job.

This inverter removes the link between the frequency of the power line and the speed, in addition it allows to adjust voltage and current supplied to the motor (even at zero speed), and is fully programmable.

The inverter can be controlled through local digital and analog inputs:

Or through field-bus connection:



Every aspect of the control is fully programmable and parameterized:



Through the serial interface RS232/RS485 based on ModBus protocol, are available all the configuration and control parameters.

The configuration is assisted by a PC program, which offers a catalog of over 44 models of predefined stepper motor setup ready for use.

It is possibile to save to a file each set of configuration parameters to recall at any time to store the work.



An optional board make availabel a PROFIBUS port and an incremental encoder input (useful to close e speed control loop for asynchronous motors).



The inverter can also operate as a V/F speed controller for the traditional three-phase asynchronous motors with currents up to 10A nominal (with the addition of an heatsink with forced ventilation).
